Product Description
Wedi Fundo Primo Shower Kit - 100% Waterproof Tile Shower System
The Wedi Fundo Primo Shower Kit is a complete, ready-to-install waterproof shower system engineered for professional tile contractors and flooring specialists. Ideal for both new construction and renovation projects, this system ensures a fast, reliable, and 100% waterproof shower installation with superior mold and mildew resistance.
Key Features
- Predefined, uniform slope
- Wide range of design, size, and function options
- Lightweight, strong, and highly durable
- Cost-effective, labor-saving installation
High-Performance Waterproof Shower System
Featuring a point drainage solution with a modern square drain grate, the Fundo Primo Shower Kit is internally waterproof thanks to Wedi's closed-cell XPS foam core. This advanced material naturally protects against moisture intrusion, mold, and mildew while offering excellent insulating properties to keep shower floors warmer than traditional mortar bed installations.
Easy Installation and Customizable Design

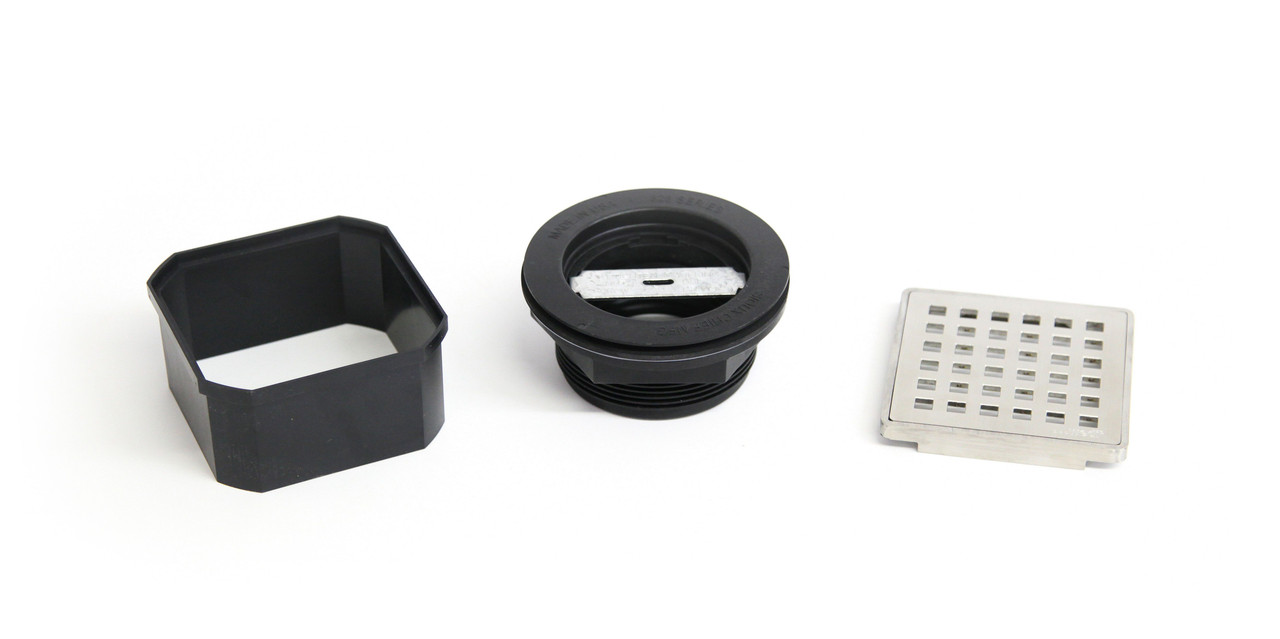

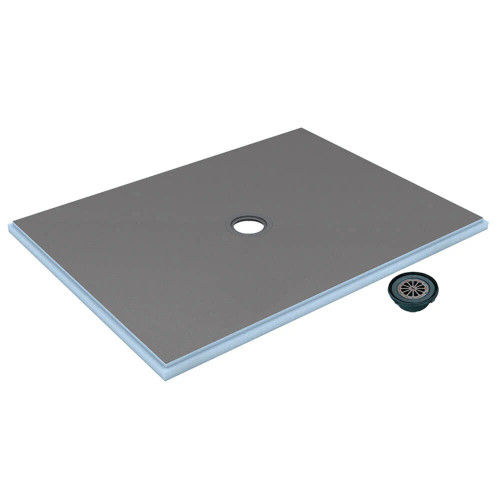

The pre-sloped Wedi shower pan allows immediate tiling with materials ranging from mosaics to large-format tiles. Each kit includes a drain unit and drain cover, with optional cover styles and pre-sloped extension panels available for fully customized shower layouts. The lightweight foam panels are easy to cut and fit, significantly reducing installation time and labor costs.
Why Choose Wedi Fundo Primo?
Designed to simplify shower installations while maintaining the highest industry standards, the Wedi Fundo Primo system offers unmatched performance benefits:
- Pre-sloped, uniform gradients for efficient drainage
- Versatile design options for custom or standard installations
- 100% waterproof XPS foam core construction
- Superior insulation for a warmer, more comfortable shower floor
- Quick, efficient installation process: measure, cut, thinset to subfloor, connect drain, and tile
Applications
The Wedi Fundo Primo Shower Kit is ideal for:
- Residential bathroom renovations
- New construction shower builds
- Custom tile shower projects
- Commercial and hospitality bathroom installations
Advantages
Adds speed, safety, and consistency to your shower installations. Its complete, inherent waterproofing eliminates the need for additional sheet or liquid membranes, providing a streamlined, reliable solution for flooring professionals and contractors.

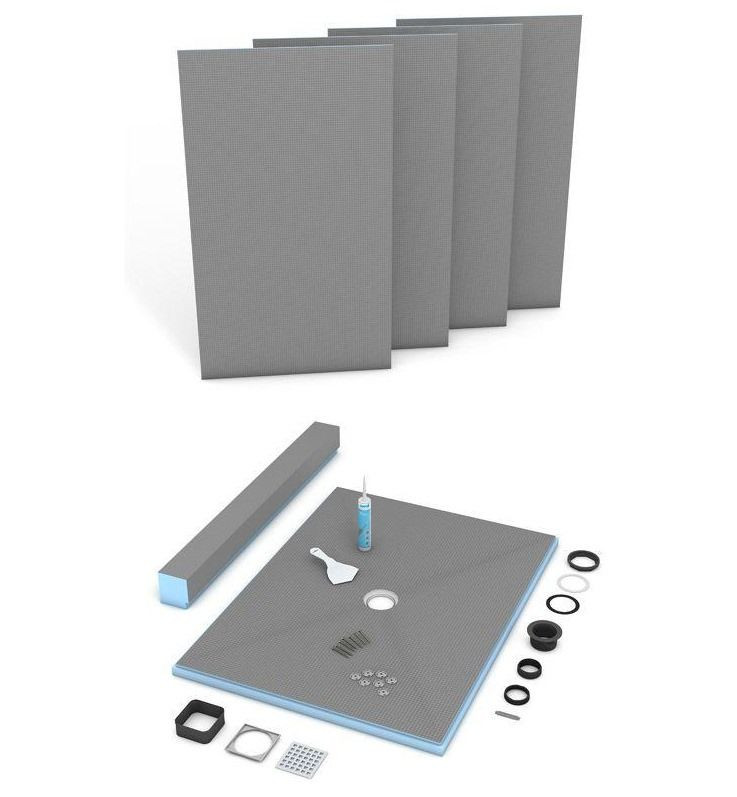

What is included in each Wedi shower kit variation
| 36" x 36" | 36" x 48" | 36" x 60" | 36" x 72" offset drain |
36" x 72" cente drain |
42" x 60" | 42" x 72" | 48" x 48" | 48" x 60" | 48" x 72" | |
| Item Number Shower Base |
073735507 | 073735516 | 073735506 | 073735521 | 073735525 | 073735527 | 073735528 | 073735505 | 073735509 | 073735508 |
| Shower Pan | 3' x 3' | 3' x 4' | 3' x 5' | 3' x 6' Offset | 3' x 6' Center | 3.5' x 5' | 3.5' x 6' | 4' x 4' | 4' x 5' | 4' x 6' |
| 1/2" Panels | 3' x 5' (4) | 4' x 5' (4) | 3' x 5' (6) | 3' x 5' (6) | 3' x 5' (6) | 4' x 5' (5) | 4' x 5' (5) | 4' x 5' (4) | 4' x 5' (5) | 4' x 5' (5) |
| Lean Curbs | 3' (1) | 5' (1) | 5' (1) | 6' (1) | 6' (1) | 5' (1) | 6' (1) | 5' (1) | 5' (1) | 6' (1) |
| Wedi Drain Kit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Wedi Joint Sealant | 10 oz. Tube (7) | 10 oz. Tube (8) | 10 oz. Tube (8) | 10 oz. Tube (8) | 10 oz. Tube (8) | 10 oz. Tube (9) | 10 oz. Tube (9) | 10 oz. Tube (8) | 10 oz. Tube (9) | 10 oz. Tube (9) |
| Screws | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. |
| Washers | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. | 100 ct. |
| Mixing Valve Collar | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Showerhead Flexi Collar | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Corner Putty Knife | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
